is a Git-based source code repository hosting service popular among teams using Atlassian tools.
You can use the Tokens Studio plugin native integration with Bitbucket to sync your Design Tokens to a repository of your choice.
We support two-way sync, meaning you can use the plugin to:
Push JSON files of Design Tokens to Bitbucket
Pull the Tokens stored in Bitbucket into any Figma file
This means the Design Tokens living in code are the source of truth for our design decisions, which can be shared between design and development teams.
This doc outlines how to set up a Bitbucket repository and add it as a Sync provider in the plugin.
→ Once set up, you can use the plugin's Push and Pull features to keep your Tokens in sync. #add-doc-link
Set up a repository and personal access Token in Bitbucket.
Configure Bitbucket as a sync provider within the Tokens Studio plugin.
Use the plugin to sync your Design Tokens between Bitbucket and Figma design files.
Once you sign in, record your Bitbucket user name and store it somewhere safe as its needed to authenticate when you configure the Tokens Studio plugin to connect with your account.

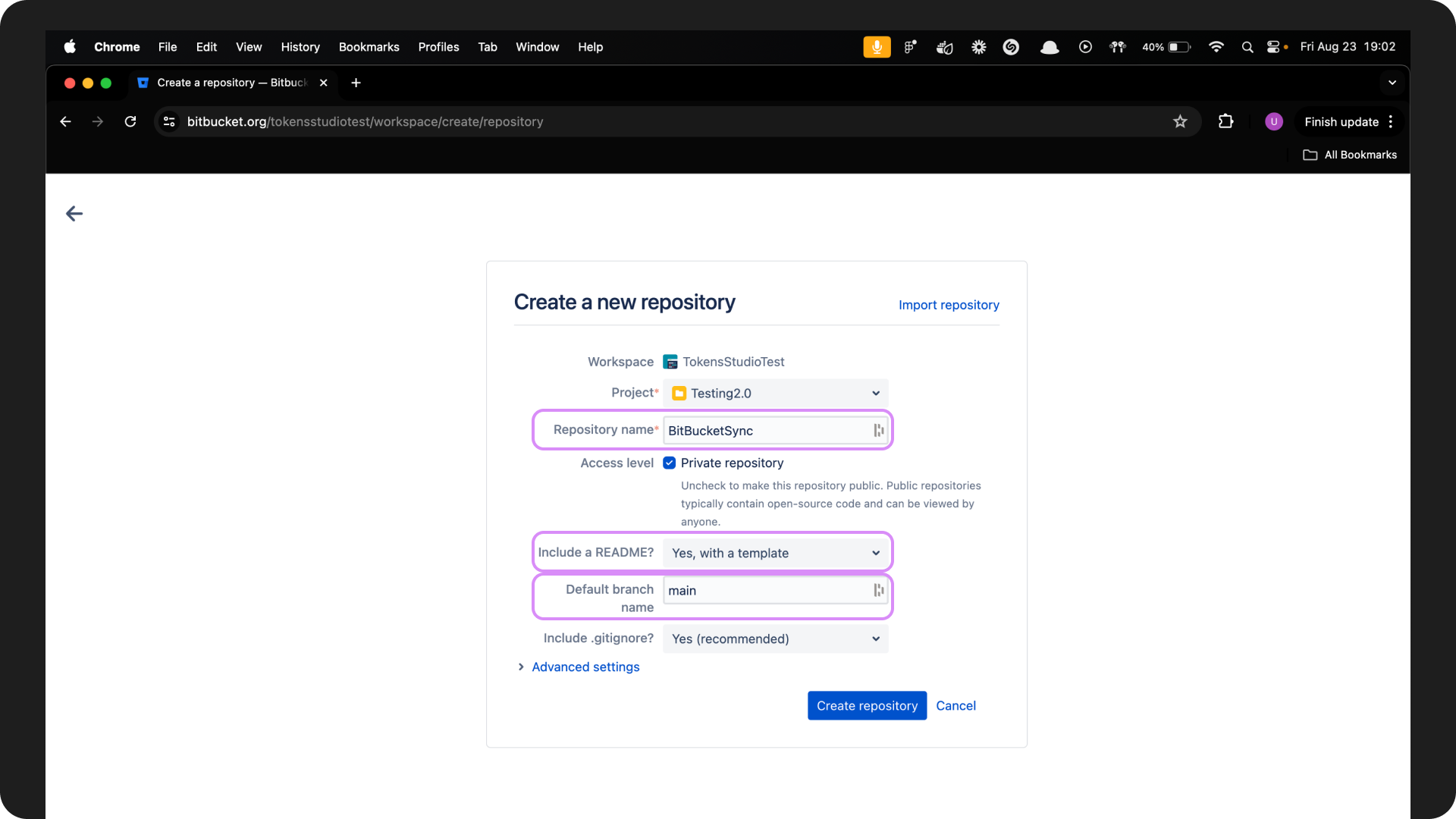

Sign into your account and select the Create button, and select Repository.
Select the project the repository should belong to.
Choose a specific and memorable repository name which will be used in the plugin as the destination for your Design Tokens.
Add a README file needs to be checked
This is mandatory because the plugin can not sync to an empty repository.
Enter your default branch name
We suggest using main or ask your engineers what they prefer
Keep a copy of the default branch name handy as you'll need it for the plugin configuration later.
Include .gitignore can be None
You are now looking at your new repository! Well done!
From your browser, Copy the URL of the repository and it somewhere safe as it's needed for the plugin configuration.
The App password is generated from Bitbucket and acts as a passcode that allows the Tokens Studio plugin to connect to your Bitbucket account.
Navigate to your Bitbucket account settings.
Locate the Personal settings section, select Personal Bitbucket settings
Select App passwords.

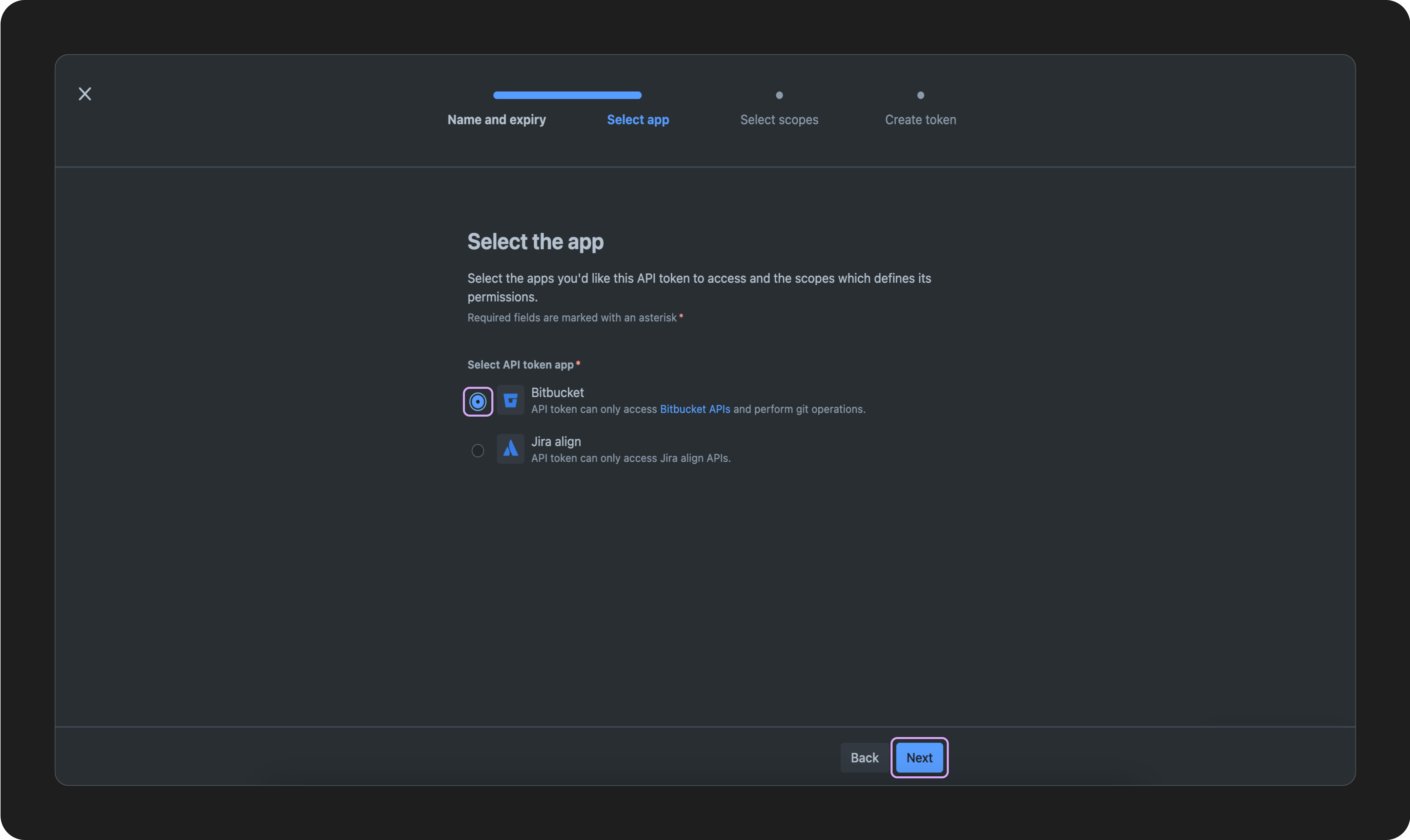

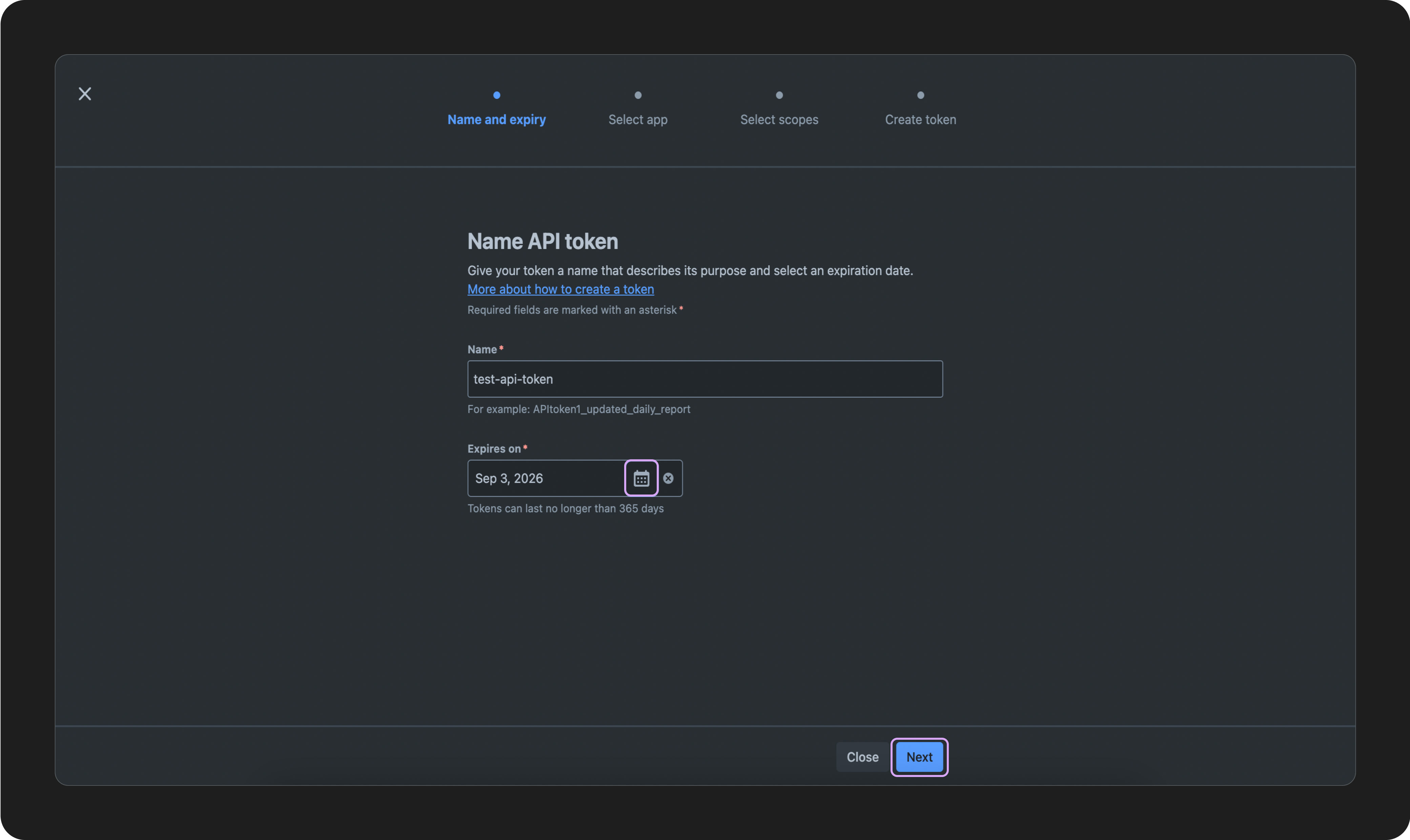

Select Create app passwords
Add a Name of what the app password is for
Example: test-token repo sync to Tokens studio

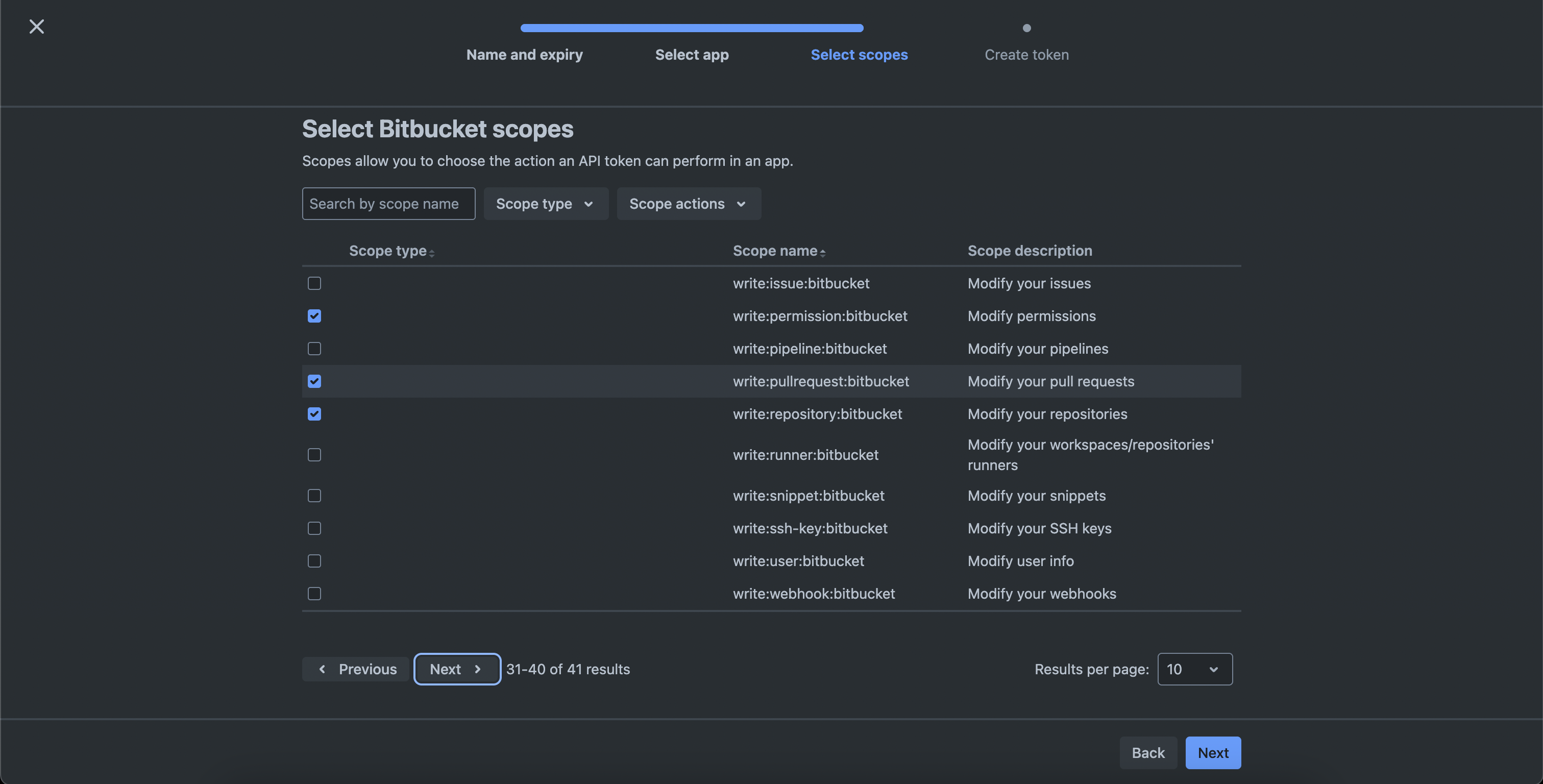

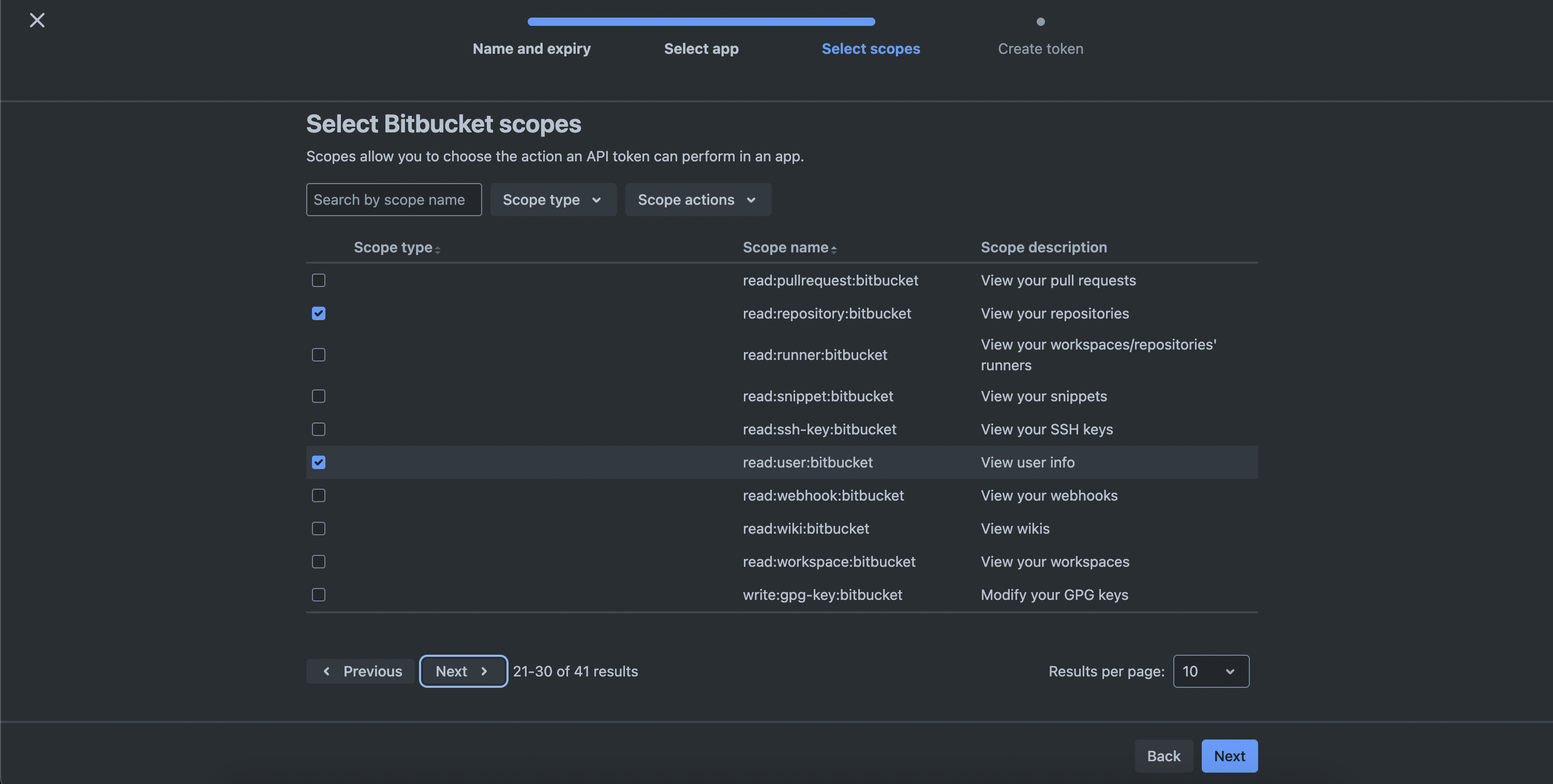

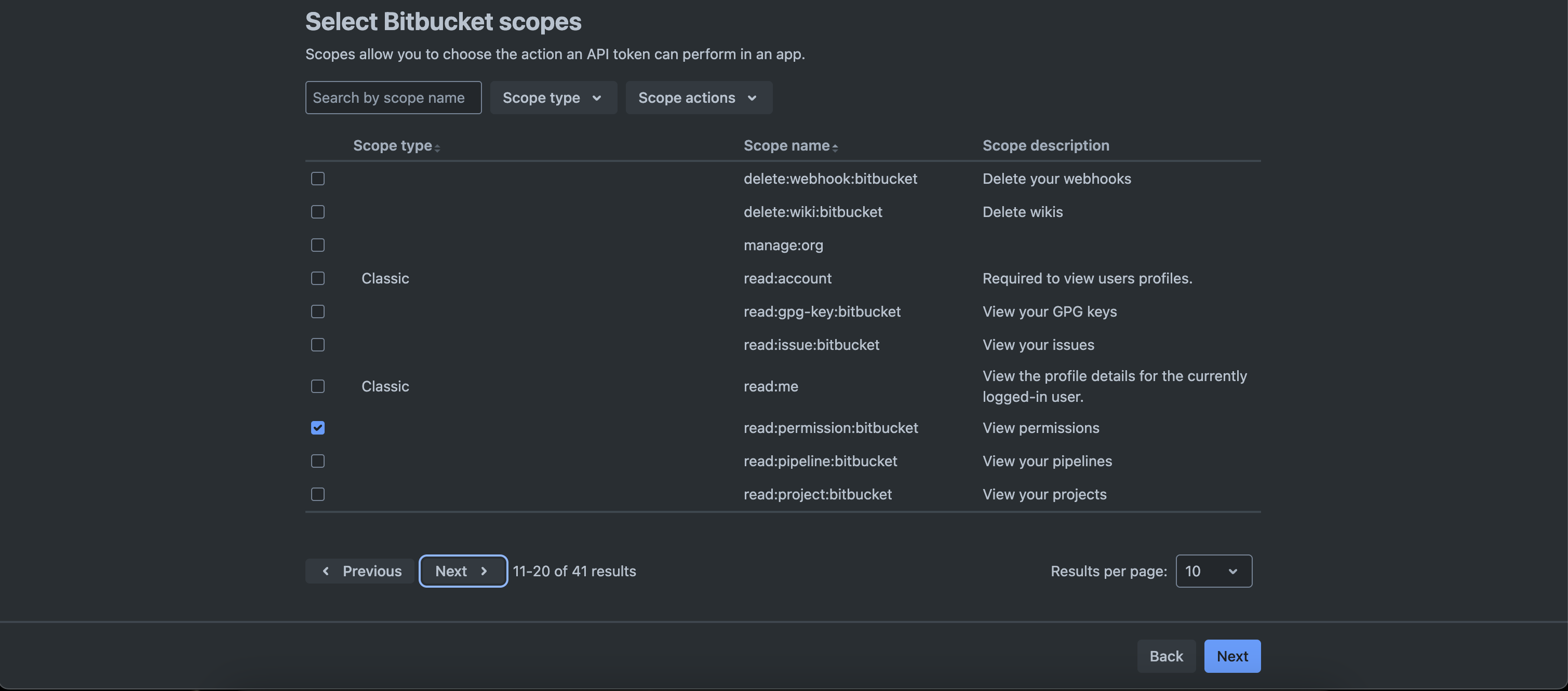

Select the permissions for app passwords
Account = Read
Repositories = Write
Select the Create button

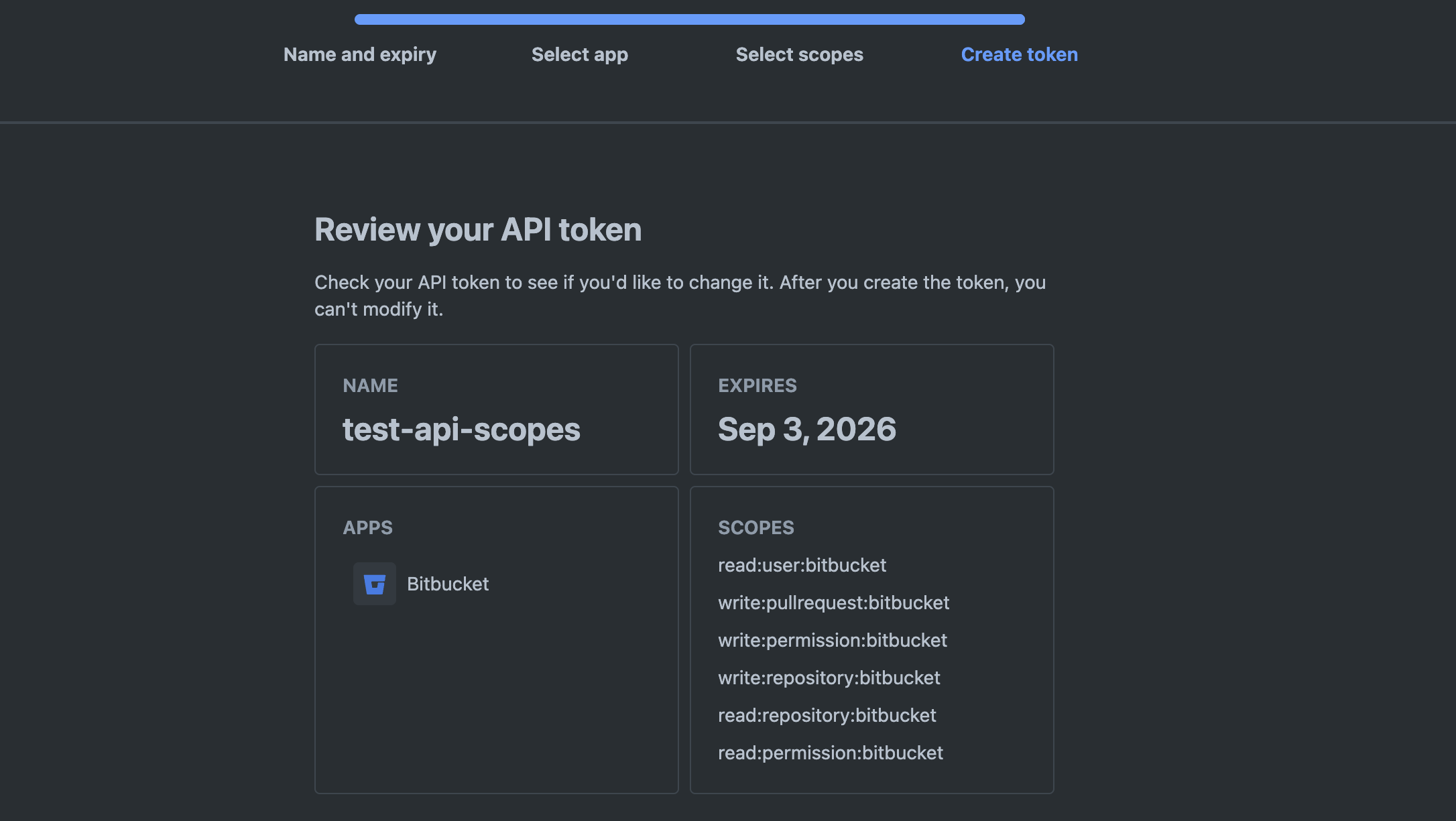

The page will display the New app password dialog
Save the generated password, and your Bitbucket username somewhere safe as it's needed for the plugin configuration.
You're ready to configure the Tokens Studio plugin in Figma!

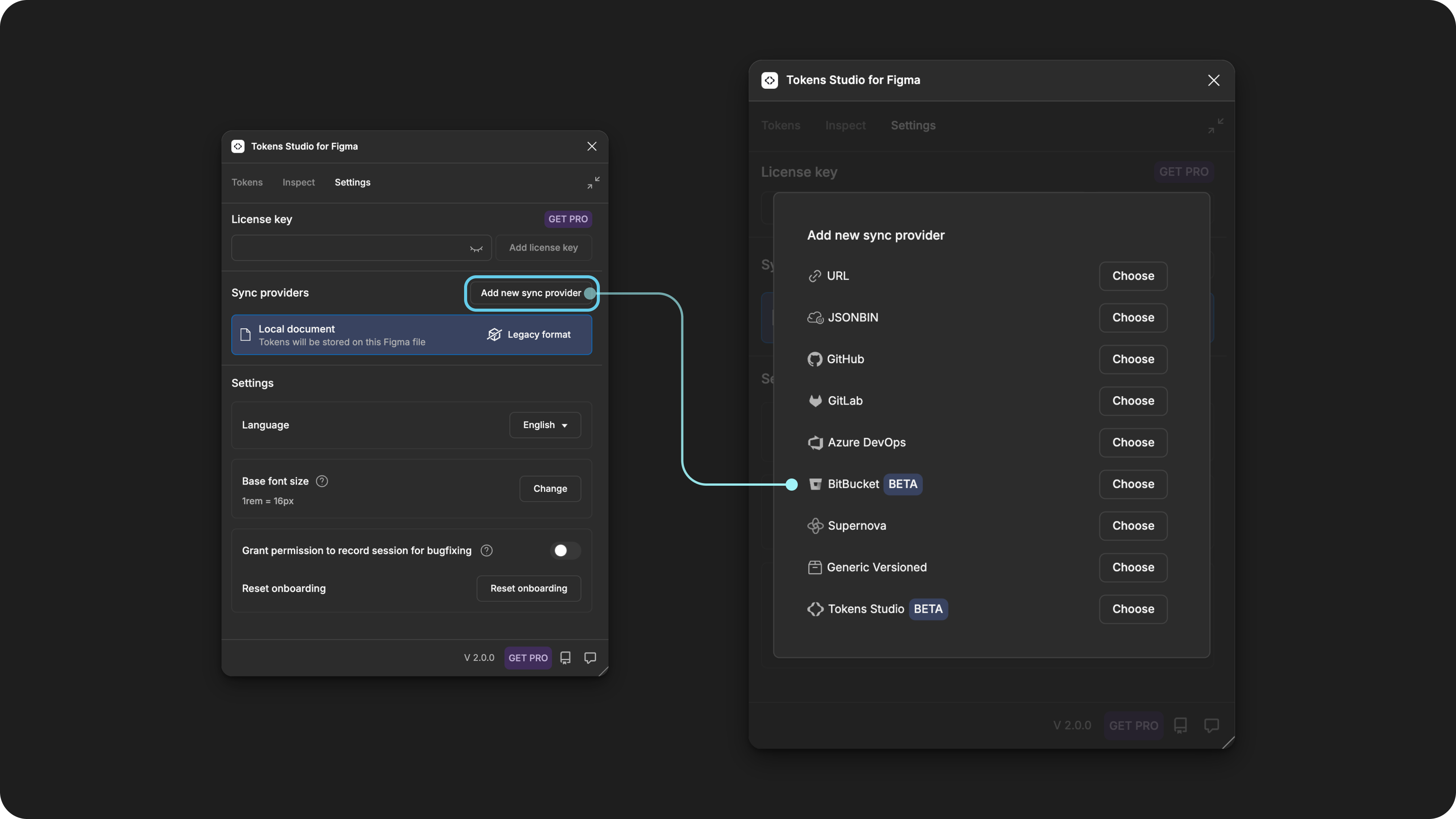

In Figma, open the Tokens Studio plugin and navigate to the Settings page using the navigation tab.
Under the Sync providers section, select the Add new button to see a list of all Token storage providers.
Select Bitbucket

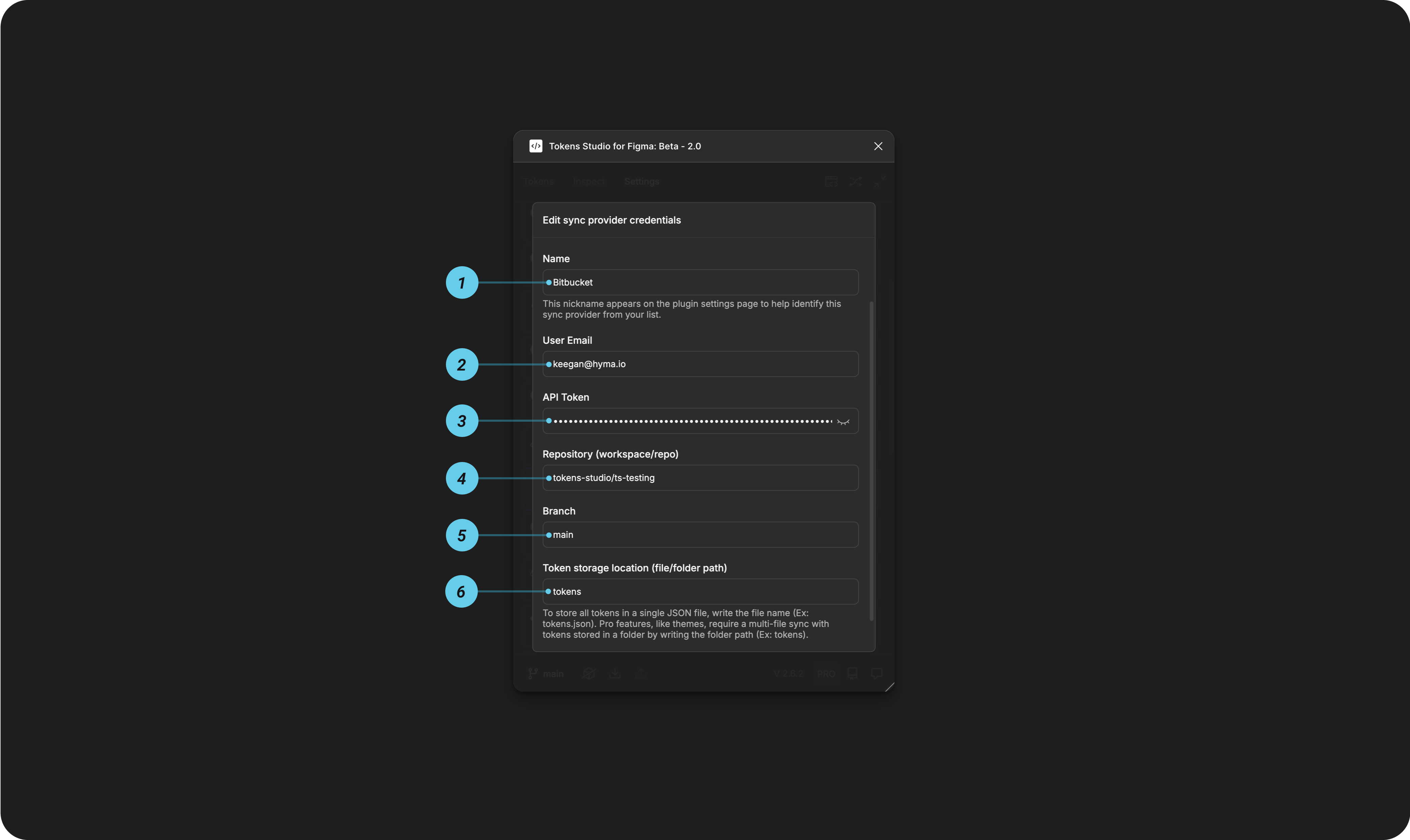

You'll need the information saved from the steps above to complete the Bitbucket sync configuration form.
1. Name
This is a nickname that shows up in the Plugin settings page later on to identify this specific sync provider configuration.
Choose something memorable to you and your project.
Example: radix ui components
2. Bitbucket username
3. App password
4. Repository (owner/repo)

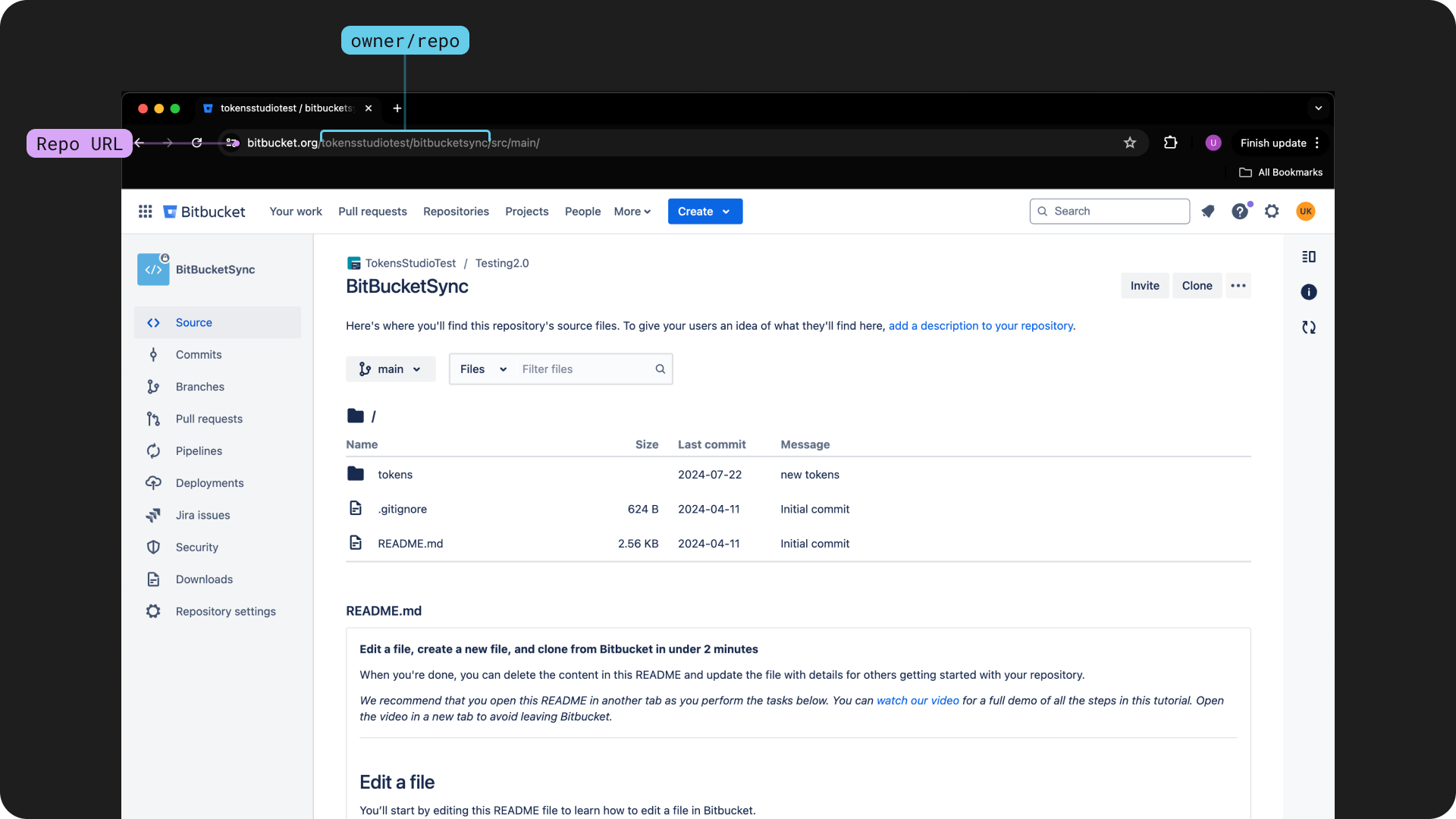

Occasionally your URL may contain a project related slug after the owner/repository. The screenshot above shows such a url. If the URL of your repo contains a slug, you'll only need the 2 sections after the bitbucket.org
For example, if your URL says https://butbucket.org/tokensstudiotest/bitnucketsync/src/main you will enter tokensstudiotest/bitbucketsync into the form in the plugin.
5. Branch
Your engineers might tell you what to add as the default repository branch where you will be pushing your Tokens, so if you aren't sure, ask them.
You can create additional branches using the plugin later.

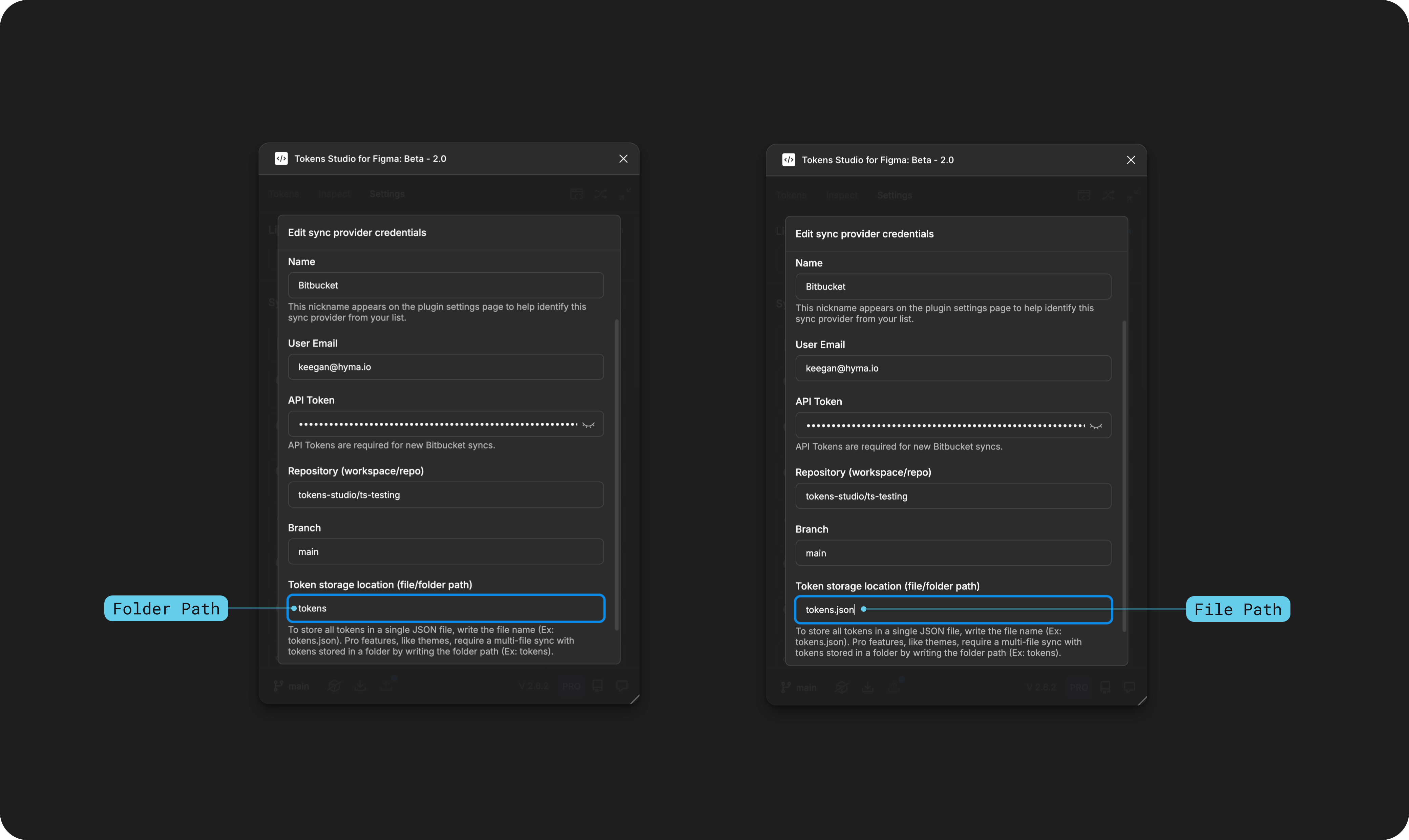

6. Token storage location (file/folder path)
This tells the plugin:
How to organize your Token JSON files in Bitbucket.
In a folder of multiple files, or a single file.
The location of where your Token data is stored.
The file or folder's pathway (or name) to sync with.
This setting impacts:
How engineers can work with our Token files during the Token transformation stage of the design-to-development process.
May limit edit access of Tokens for other team members using the Tokens Studio plugin.
Folder
The folder option syncs Token data from the plugin into a folder that contains multiple JSON files or subfolders of JSON files.
In the plugin, enter the pathway of the folder where you want the Token data to be stored, which is the folder name without any extensions.
For example:
Our Bitbucket repository will have a folder called tokens synced to the Tokens Studio plugin in Figma.
Each Token Set created in the plugin is added to the folder as an individual JSON file.
Additional data files generated by the plugin are also added to the folder.
For example, themes configuration.
Recall that storing your Token data in a folder (multi-file sync) is a pro feature.
If other team members are working with your Tokens and do not have a Pro Licence for Tokens Studio, your Tokens will be read-only for them.
File Path
Setting our Token storage as the file option syncs our Token data from the plugin into a single JSON file in code.
Combining Token data into a single file limits engineers' ability to work with Theme information when transforming Design Tokens.
→ Learn about the Themes (pro) feature in Tokens Studio here. #add-doc-link/themes-pro
File storage might work for you if:
You are using the free version of Tokens Studio.
Engineers are not using your Design Tokens in code.
In the plugin, we enter the pathway of the JSON file where we want our Token sets to be stored, which is the file name with the .json extension.
For example:
Our Bitbucket repository will have a single code file called tokens.json synced to the Tokens Studio plugin in Figma.
Each Token Set created in the plugin is combined into this single file in our repository.
Once you Save your credentials, the plugin will compare your Tokens with whats in your repository.
You'll see a modal asking you to push or pull to Bitbucket to 'sync' the plugin data with your repository.
As you work in the plugin, push and pull indicators remind you to stay in sync with your Bitbucket repository.
Once your Token JSON files are synced to your Bitbucket repo, you have a shared source of truth between Designers and Engineers!
Mentioned in this doc:
None yet!
How might we improve the experience of working with sync providers in general?
If you haven't already, sign up for a Bitbucket account at
Review the options,
The username of the Bitbucket account you saved in is used as a part of the authentication process between the plugin and Bitbucket.
The App password you saved from .
The URL from the repository from the has the owner/repository in it (all characters after the bitbucket.org/)
If you created a new repo following , you will enter main.
